Technical Specifications
Camera
Image sensor 1/3”, 4.0 megapixel
Progressive scan, CMOS
Lens 2.8 mm, F2.0, Fixed iris
Horizontal field of view 95.8
?
Vertical field of view 55.2?
DORI distance Detect : 63 m
Observe : 25.2 m
Recognize : 12.6 m
Identify : 6.3 m
Day and night IR-cut filter with auto switch (ICR)
Minimum illumination Color: 0.01 Lux (F2.0, AGC ON)
0 Lux with IR
Shutter time 1 to 1/100000 sec
IR illumination Smart IR, 850nm wavelength
Maximum distance up to 30 meters
Wide dynamic range (WDR) 120 dB
Video
Maximum resolution 2688 x 1520
Multi-streaming 3 Streams
Frame rate Main Stream
4MP (2688 x 1520), Max 30 fps
4MP (2560 x 1440), Max 30 fps
Sub Stream
4CIF (704 x 576), Max 30 fps
Third Stream
CIF (352 x 288), Max 30 fps
Video compression Ultra 265, H.265, H.264 (Baseline/Main/
High Profile), MJPEG
Video bit rate CBR/VBR, 128 Kbps~16 Mbps
Audio
Audio streaming Two-way audio
Audio compression G.711, 8 kHz sampling rate
Suppression Supported

White balance Auto/Outdoor/Fine Tune/Sodium Lamp/
Locked/Auto2
Digital noise reduction 2D/3D DNR
Backlight compensation
(BLC)
On/Off
Highlight compensation
(HLC)
On/Off
Image defogging Digital defog
Image dewarping -
Image rotation Normal/Vertical/Horizontal/180?/
OSD Up to 4 OSDs
Privacy mask Up to 4 areas
Region of interest (ROI) Up to 2 areas
Motion detection Up to 4 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP,
PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP,
FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,
QoS
Compatible integration ONVIF? Profile G, ONVIF? Profile S and
ONVIF? Profile T, API
Security IP address filtering, Access policy,
ARP protection, RTSP authentication,
User authentication
Interface
Network 1 x RJ45 10/100M Base-TX Ethernet
Audio input Impedance 35k?; amplitude 2V [p-p]
Audio output impedance 600?; amplitude 2V [p-p]
Alarm input/output 1 input, 1 output
Built-in Mic Supported
Reset button Supported
General
Material Metal + Plastic
Edge storage Micro SD card up to 256GB
ANR (Automatic Network Replenishment)
Operating conditions -35?C to 60?C (-31?F to 140?F)
Humidity: ?95% RH (non-condensing)
Storage conditions -35?C to 60?C (-31?F to 140?F)
Humidity: ?95% RH (non-condensing)
Power Power over Ethernet (PoE) IEEE 802.3af
DC 12V?25%, max 5.5 W
Surge protection 2 kV
Dimension (? x H) ? 108.6 x 61.8 mm (? 4.28” x 2.43”)
Net weight 0.22 kg (0.49 lb)




เขียนบทวิจารณ์ของคุณเอง

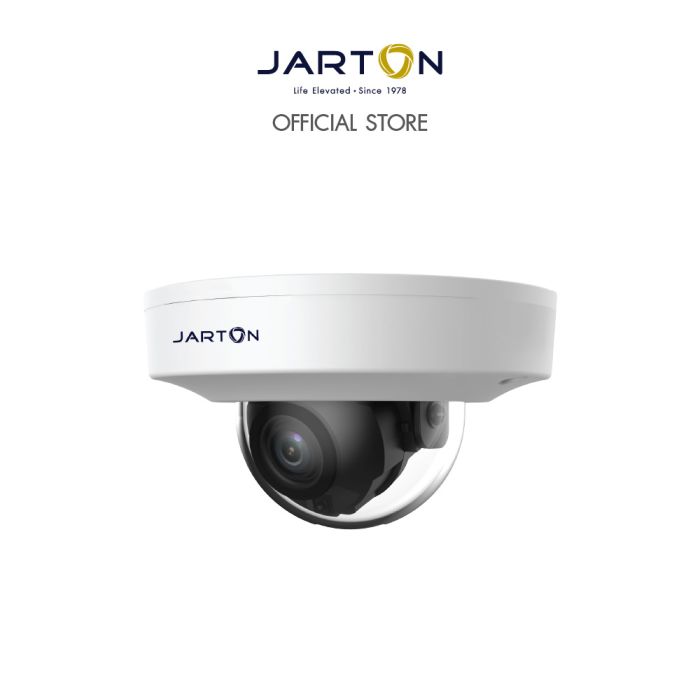

รีวิวจากลูกค้า:S-JTIPC8354SR3-F 4MP Mini Dome
